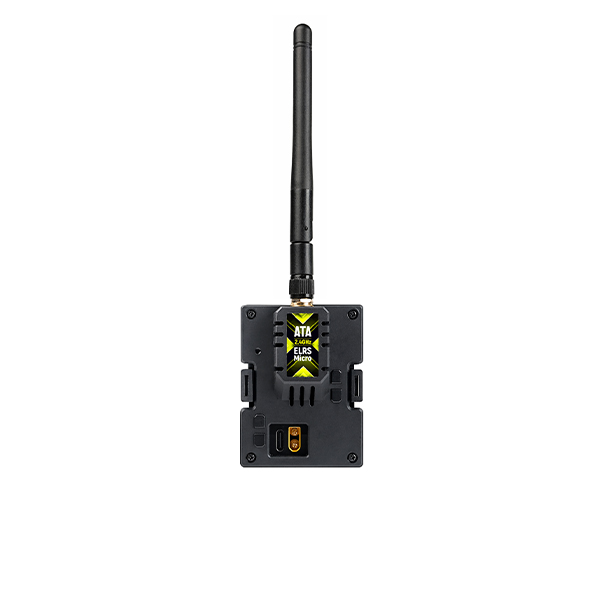

2.4GHz Micro Long-range Module

ATA ELRS 1W

Low Latency | High Power | Wide Compatibility

ExpressLRS V3.3

1W Transmit Power

F1000 Max Refresh Rate

2.4GHz Frequency

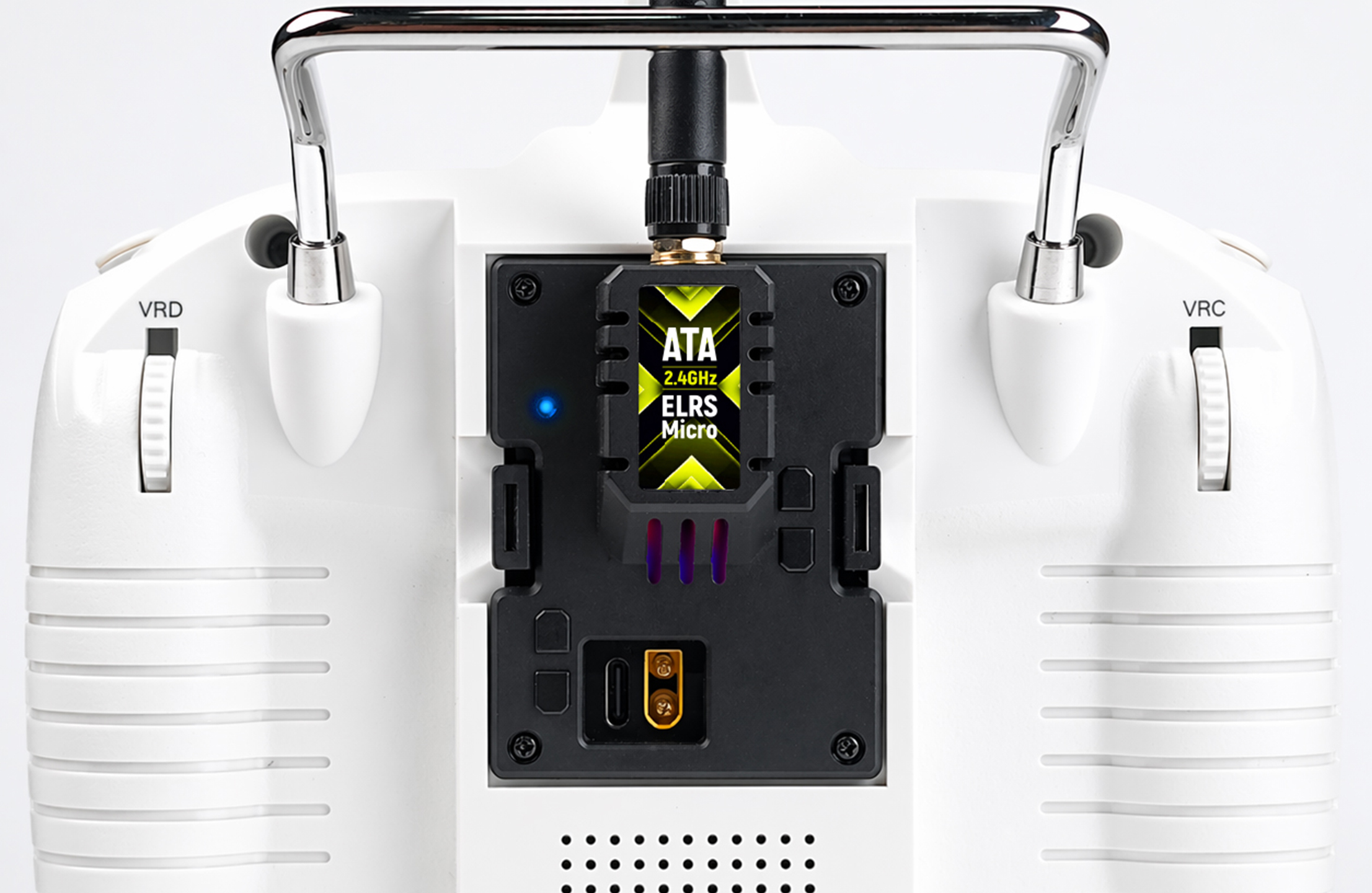

JR Bay Direct Plug-in

2.4G Band

Customizable Data Refresh Rate and RF Output Power

Selectable data refresh rates: 50Hz,100Hz (Full), 150Hz, 250Hz, 333Hz (Full), 500Hz, D250, D500, F500, F1000.

Adjustable RF output power: 25mW, 50mW, 100mW, 250mW, 500mW, 1W.

1W Transmit Power for Extended Range

Lightning-fast Response, Millisecond-precise Control

The 2.4GHz ELRS Micro module, with its high refresh rate and ultra-low latency, provides instantaneous, precise control response in highly dynamic flight scenarios.

Even when the drone is performing high-speed racing or complex acrobatic maneuvers, control commands are transmitted seamlessly, delivering a truly responsive and intuitive "human-machine integration" experience.

Max F1000 Refresh Rate for Stable Data Transmission

It delivers solid connection and steady data transfer, ensuring reliable control both indoors and outdoors.

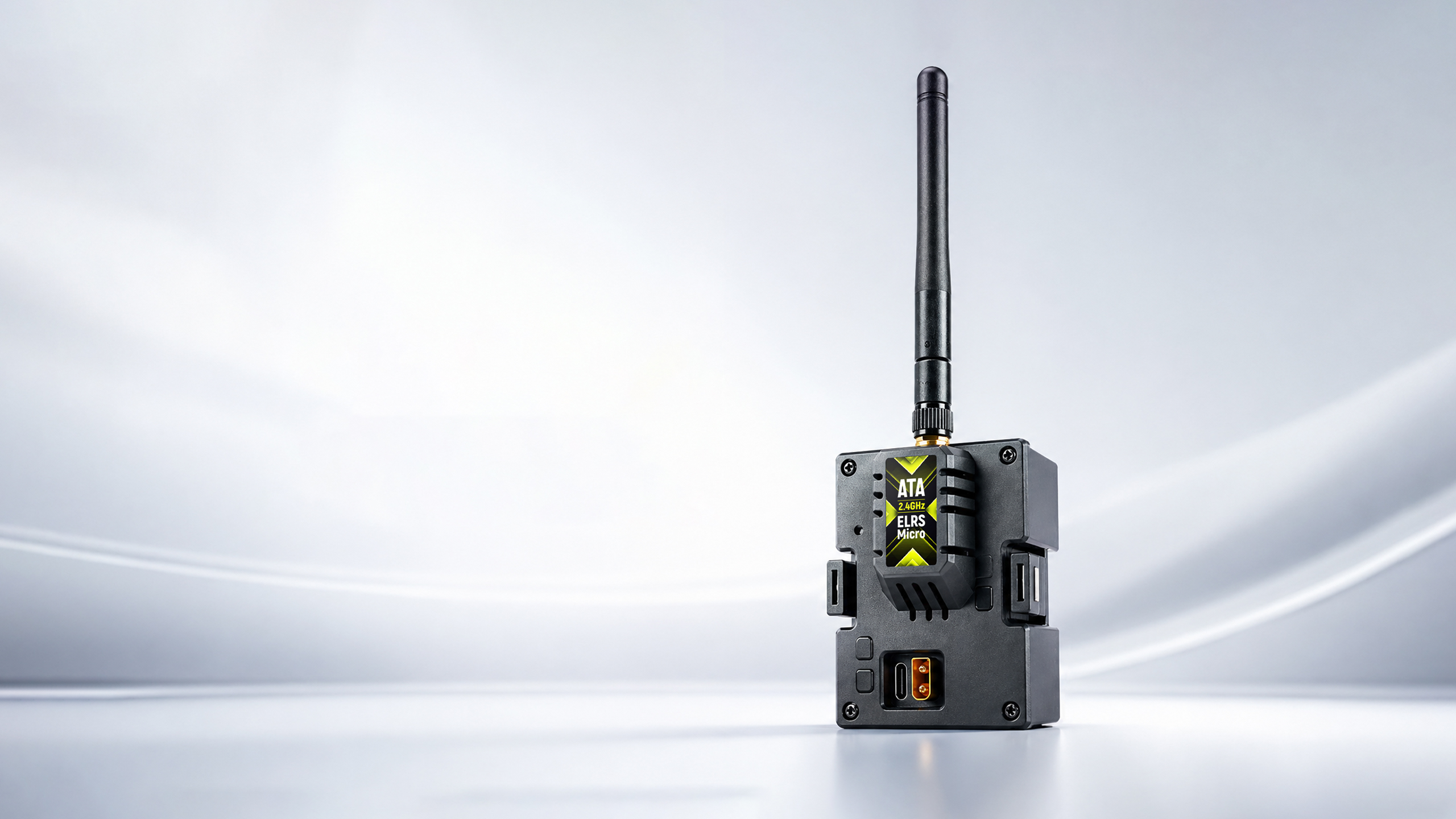

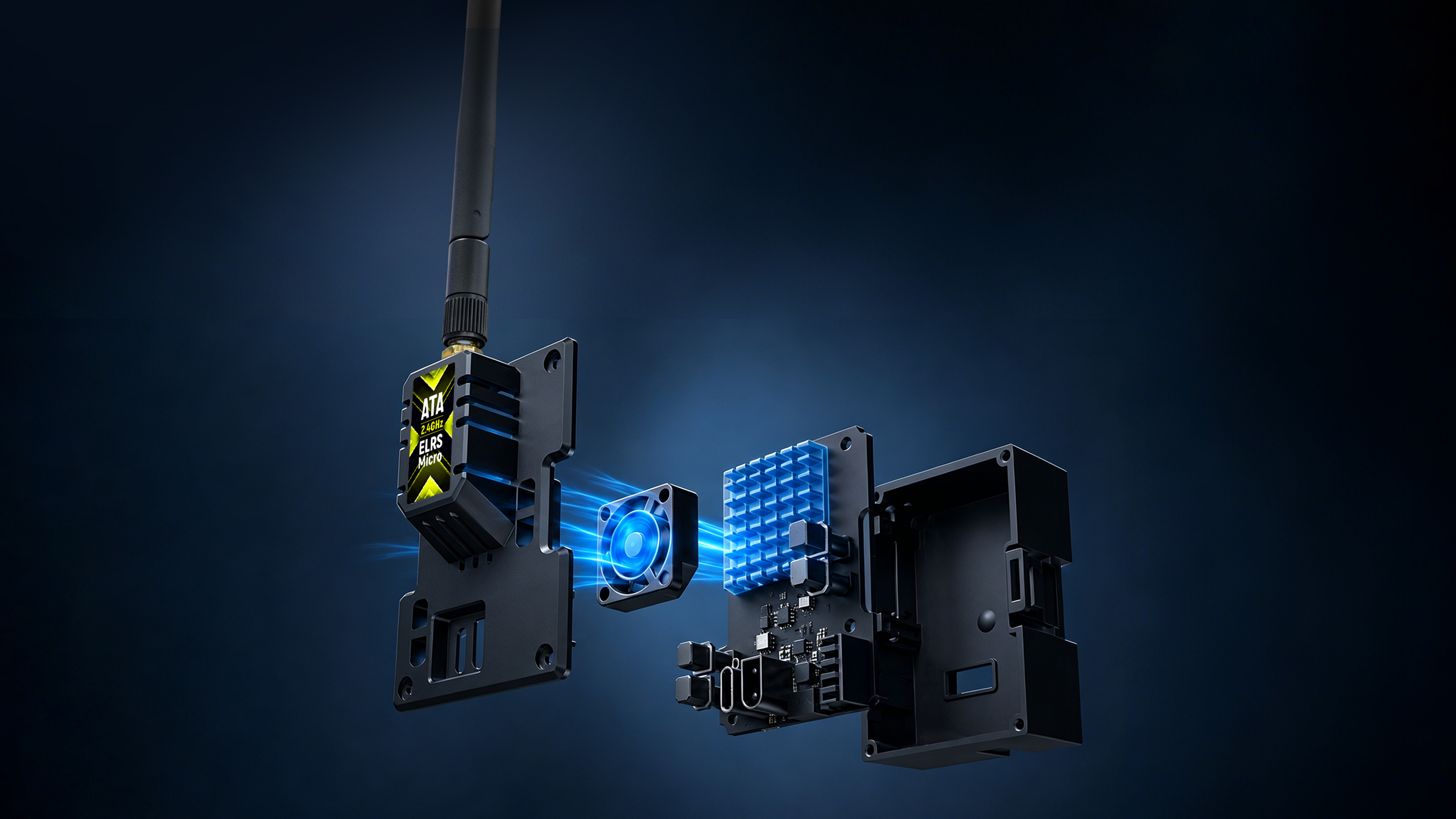

Built-in High-efficiency Cooling Fan

Features a built-in high-efficiency cooling system with an independent airflow. The fan automatically starts when the power exceeds 250mW, maintaining a constant speed. It remains cool to the touch even during extended operation at 1W.

* By default, the fan automatically starts when the power exceeds 250mW. The power level triggering the fan can also be manually adjusted via a script.

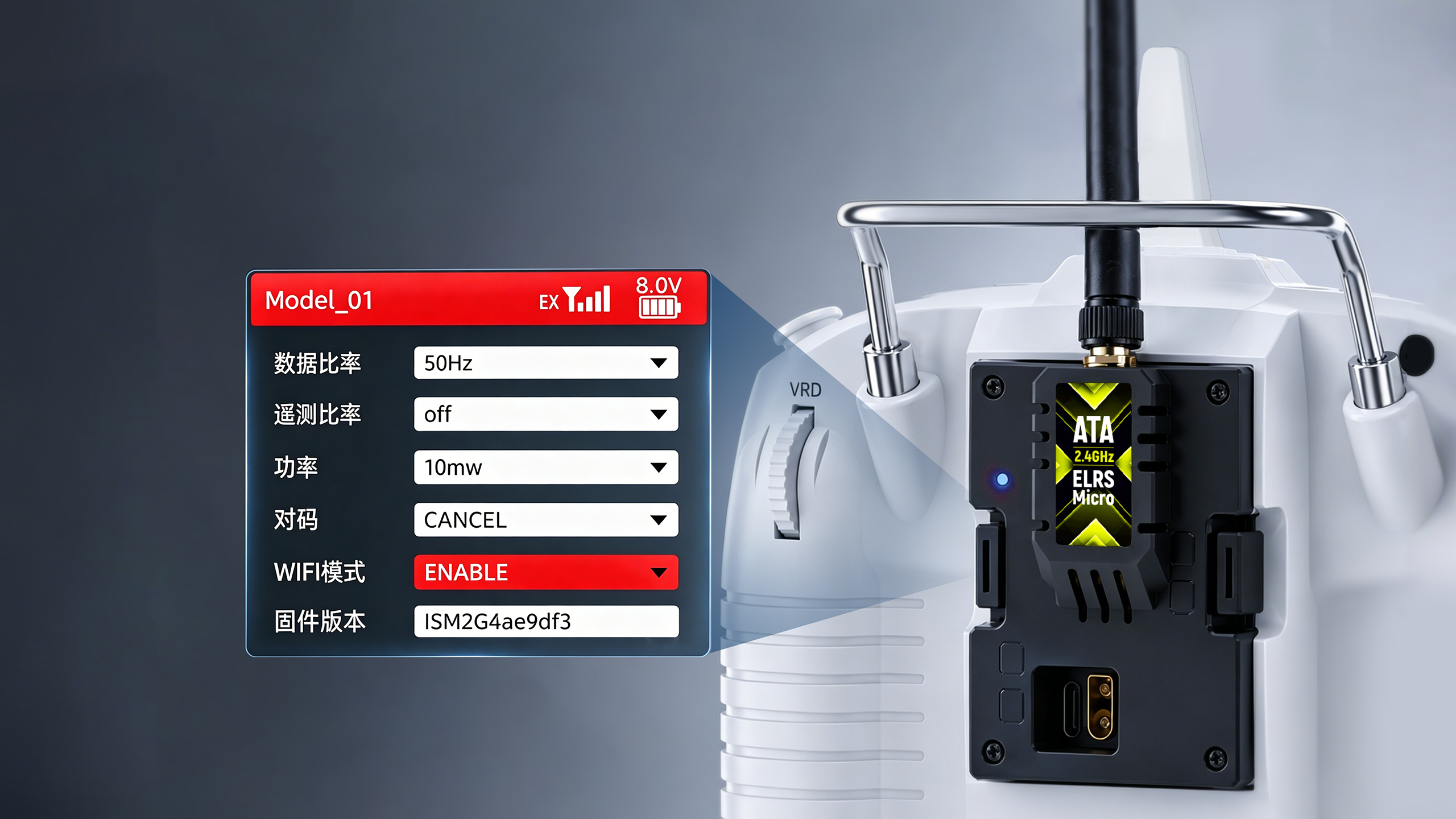

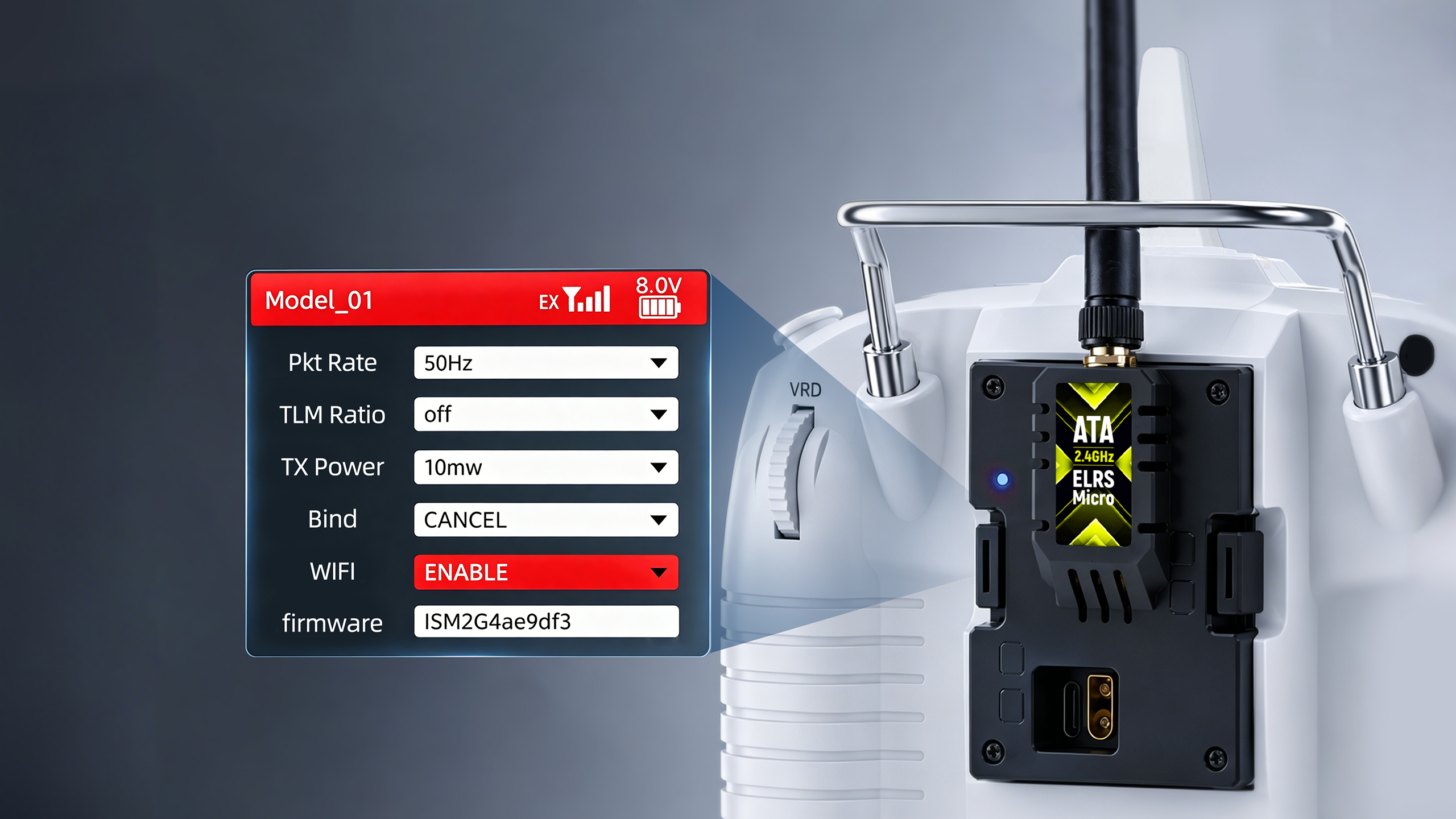

Full Parameter Tuning via Transmitter for FPV Drones

When paired with Radiolink 16-channel full-range transmitter T16D, the system can be updated to the latest version in one click via the module's LUA script. All parameters including transmit power, frequency band and refresh rate are adjustable directly on the transmitter, combining user-friendly UI with full functions of the open-source TX module.

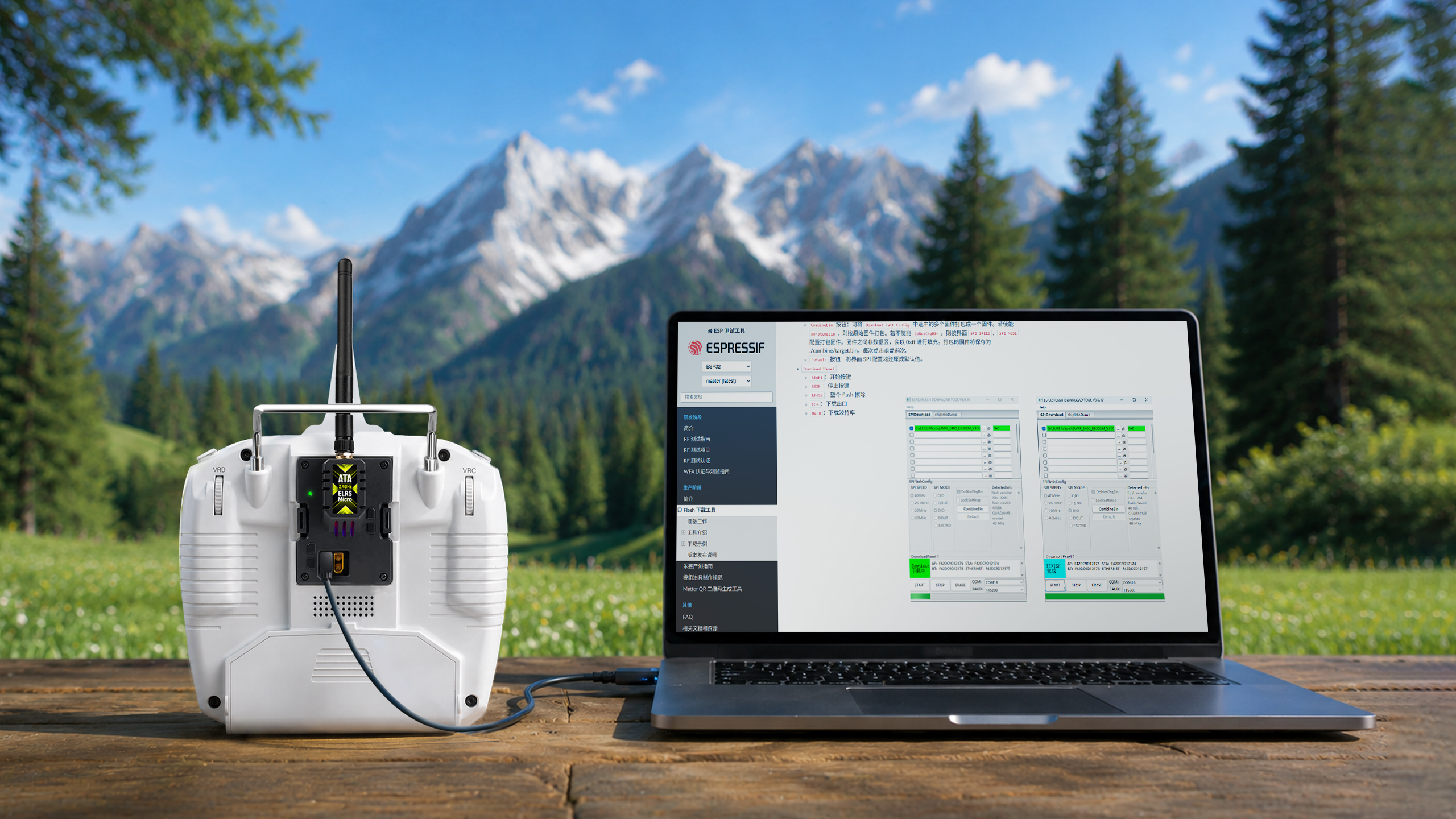

Supports Firmware Update via Type-C & Wi-Fi

This 2.4GHz ELRS Micro TX Module supports both Type-C wired and Wi-Fi wireless firmware updates. Update anytime anywhere for true wireless freedom.

Enjoy unrestricted upgrades and keep your device running with the latest performance.

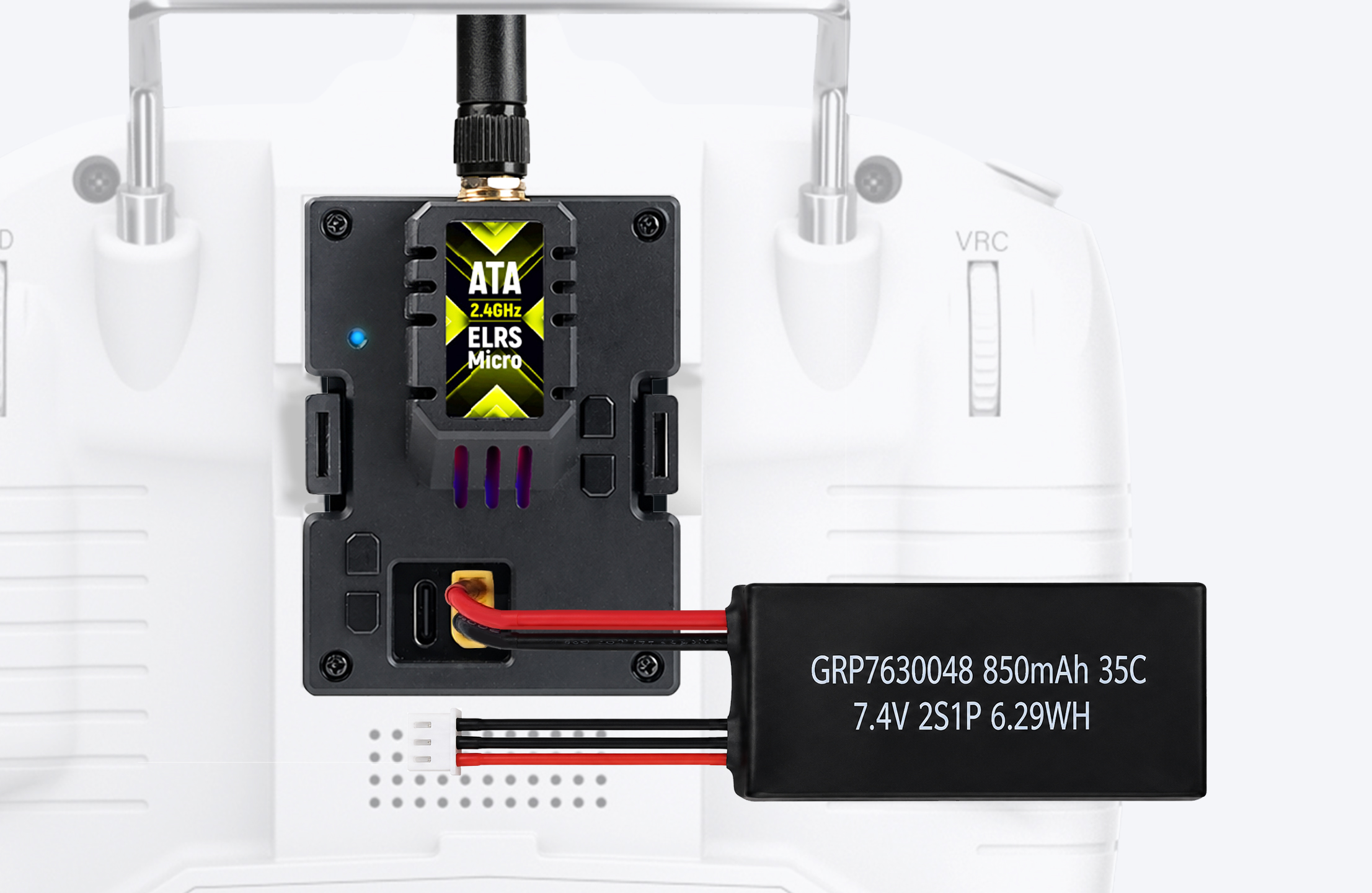

Dual Power Supply Supported

This 2.4GHz ELRS Micro TX Module comes with standard XT30UPB-M connector and supports dual power modes.

It can be powered directly by the transmitter for plug-and-play use, or externally by a 2S battery to ensure sufficient power under high output.

*Do NOT use 3S or higher batteries (>12V), which will cause permanent damage to the module.

Power Supply Range

5-12V (2S)

*Do not use 3S or higher batteries (>12V), as this will cause permanent damage to the module.

* In the process of using ELRS 1W Micro, if you encounter problems, you can view the manual, tutorials, or FAQ on the navigation bar of this introduction.

* After consulting all the tutorials, you still have questions about the operation. You can consult our technical support by emailing after_service@radiolink.com.cn

ATA ELRS 1W Micro Module Packing List
